The Right Technology in the Right Hands

Fox Valley Metal Tech invests in state-of-the-art equipment and skilled operators to produce some of the most complex fabrications in the industry. Their commitment to continuous improvement places them on the forefront of precision metal fabrication capabilities. Click below to learn more.

laser-cutting-icon
Laser Cutting
saw-icon
Saws
waterjet-icon
Waterjets
punch-press-icon
CNC Punch Presses
press-brake-icon
CNC Press Brakes
welding-helmet-icon
Welding
cnc-machine-icon
Machining Centers
paint-sprayer-icon
Painting and Finishing
support-icon
Support Equipment
Mitsubishi Laser-1
laser-cutting-icon

Laser Cutting

Mitsubishi 3015 eX 50

Specifications:
  • 4.5 KW
  • Mild Steel (1”)
  • Stainless (¾”)
  • Aluminum (5/16”)

Mitsubishi 3015 LVP

Specifications:
  • 4 KW
  • Mild Steel (1”)
  • Stainless (¾”)
  • Aluminum (5/16”)

Mitsubishi River System

Specifications:
  • 8 Towers
  • 2 Loading and Retrieval Stations
  • 92 Storage Shelves, 4,400 Lbs. capacity per shelf
  • Sheet Size:  5 ft. X 10 ft.
  • 4 Off-Load Tables, 11,000 lbs. Capacity per Table



saw
saw-icon

Saws

HEM VT120HA-60TS

Specifications:
  • Rectangular Capacity: 18" W x 24" H
  • Square Capacity: 18" (Square)
  • Round Capacity: 18" (Diameter)
  • Bar-feed: 48" (Stroke Hydraulic Motor - Multiple Index)
  • Blade Size: 16' 6" L x 1.25" H x .042"

FOM Panda 550

Specifications:
  • Tungsten carbide Ø 550 mm saw blade
  • Horizontal accuracy +/- .004”
  • Cutting angle from 20° Rh to 20° Lh

Metal Mizer

Specifications:
  • Vertical Bandsaw



OMAX-Optimax-80x-1
waterjet-icon

Waterjet Machining

OptiMAX 80X JetMachining Center

Specifications:
  • +/- .001” linear position accuracy and repeatability of +/- .001”
  • Z-Axis Travel up to 12”
  • Cutting pressure of 60,000psi
  • Up to 80” x 160” in X-Y cutting travel



Vipros
punch-press-icon

CNC Punch Press

Vipros 357 Queen

Specifications:
  • Nominal rated capacity: 33 Tons
  • Depth of throat: 50"
  • X-Axis travel: 72"
  • Y-Axis travel: 50"
  • Max. Material Thickness: 1/4" (Mild Steel)
  • Max. Hole Diameter: 4.5"
  • 50” x 144” Max Sheet

W.A. Whitney

Specifications:
  • 50 Ton



Trumpf 5130-1
press-brake-icon

CNC Press Brakes

Trumpf Trubend 5230

Specifications:
  • 253 Ton
  • 14' max length
  • 6 Axis Back Gauge

Trumpf Trubend 5130

  • Specifications:
    • 143 Ton
    • 10' max length
    • 6 Axis Back Gauge

Amada HDS 1303NT

Specifications:
  • 6 Axis
  • 130 Ton
  • 122” max length

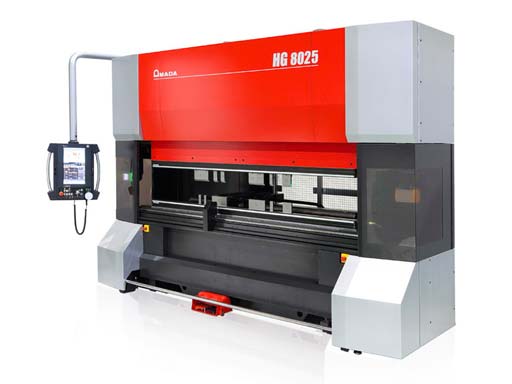

Amada HG 8025

Specifications:
  • 6 Axis
  • 80 Ton
  • 102” max length

Guifil PE 20-60

Specifications:
  • 60 Ton
  • 72” max length



fanuc-welding-robot
welding-helmet-icon

Welding

Equipment

  • TIG and MIG Welders
  • Stud Welders
  • Spot Welders
  • Arc Mate 120 IL Robotic Welder

Core Processes

  • GMAW (Gas Metal Arc Welding)
  • GTAW (Gas Tungsten Arc Welding)
  • FCAW (Flux Core Arc Welding)
  • RSW (Resistance Spot Welding)

Material Capabilities

  • Carbon Steel
  • High Strength Low Alloy Steels
  • Aluminum
  • Stainless Steel
  • Sheet Steel to Unlimited Thicknesses
  • Plate and Sheet, Tubing and Structural Shapes



sm_sample
cnc-machine-icon

Machining Centers

Haas VF-4

Specifications:
  • Vertical Mill
  • 3,500 lbs max
  • 50” x 20” x 20” workspace size
  • 40 tool stations

Haas VF-4 (Quick Change)

Specifications:
  • Vertical Mill
  • 3,500 lbs max
  • 50” x 20” x 20” workspace size
  • 40 tool stations

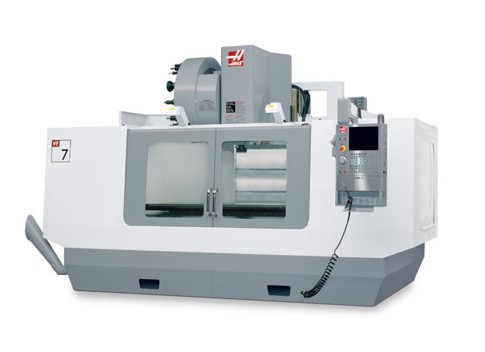

Haas VF-7

Specifications:
  • Vertical Mill
  • 3,500 lbs max
  • 50” x 20” x 20” workspace size
  • 40 tool stations

Haas VF-9

Specifications:
  • Vertical Mill
  • 4,000 lbs max
  • 84” x 36” workspace size
  • 30 tool stations



Haas VF-10

Specifications:
  • Vertical Mill
  • 4,000 lbs max
  • 120” x 32” x 34” workspace size
  • 50 tool stations

Feeler FV-2218

Specifications:
  • Bridge Mill
  • 15,000 lbs max
  • 79” x 67” workspace size
  • 60 tool stations

Feeler FV-3224

Specifications:
  • Bridge Mill
  • 24,000 lbs max
  • 118” x 87” workspace size
  • 60 tool stations

VisionWide NF-3230

Specifications:
  • Double Column Bridge Mill
  • 13,000 lbs max
  • 119” x 96" workspace size
  • 40 tool stations

VisionWide SM-2622

Specifications:

  • Double Column Bridge Mill
  • 12,000 lbs max
  • 110” x 82” workspace size
  • 60 tool stations

Toshiba BTD-13F.R22

Specifications:
  • Boring Bar
  • 22,000 lbs max
  • 70” x 86” workspace size
  • 60 tool stations

Toshiba BTH-130.R24

Specifications:
  • Boring Bar
  • 44,000 lbs max
  • 118” x 90”
  • 90 tool stations



Paint-1
paint-sprayer-icon

Painting and Finishing

Bead Blasting Booth

Specifications:
  • 140” x 90” x 90”

RTT Pressurized Side Down-Draft Paint Booths

Specifications:
  • 20’ x 14’ x 20’

Wash Bay

Specifications:
  • 20’ x 14’ x 20’

Iron Phosphate Booth

Specifications:
  • 12’ x 10’ x 12’



finishing-equipment-traced
support-icon

Support Equipment

Equipment Specifications
Togo III Tool sharpener
Ultima Drill
Hagger Pem
Amada Shear - ½” plate max
Jet SR-1650 Roller
Montgomery Roller - 14 Gauge, ¼” at 12”
Roper Whitney Radius notcher
Haas Tube bender
Giant GT10 Vibratory Deburring System
SteelMaster Deburring & Graining
