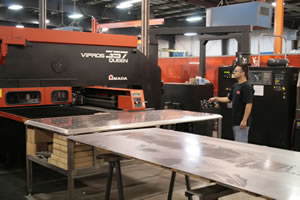

Vipros 357 Queen - High Speed Hydraulic Turret Punch Press
Advanced Tooling Design
- Air blow/oil mist tools automatically lubricate all moving surfaces, maximizing tool life and reducing maintenance
- Energy efficient tooling provides rapid tool length adjustment for maximizing hit rates by eliminating unnecessary ram movements
Quiet Operation
- Unique servo controlled hydraulic ram cycle minimizes unplanned production interruptions
- Brush table design minimizes positioning noise and provides scratch-free processing
High-Speed Punching
- 520 HPM maximum and 275 HPM on 1" centers achieved through highly responsive, servo controlled hydraulic ram
- High-speed table positioning of 4,229 IPM
High Quality Forming
- Variable dwell time at bottom of stroke provides high quality, press brake-like forming, often eliminating secondary processing
- Electronic adjustment simplifies setup of progressive forms, flanges, and embossments
Punch and Form Option
- Enhanced forming operations
- Maximum form height of 0.787"
- Punching tools can be used next to forming tools
- Three forming methods available to accommodate most types of forming operations
